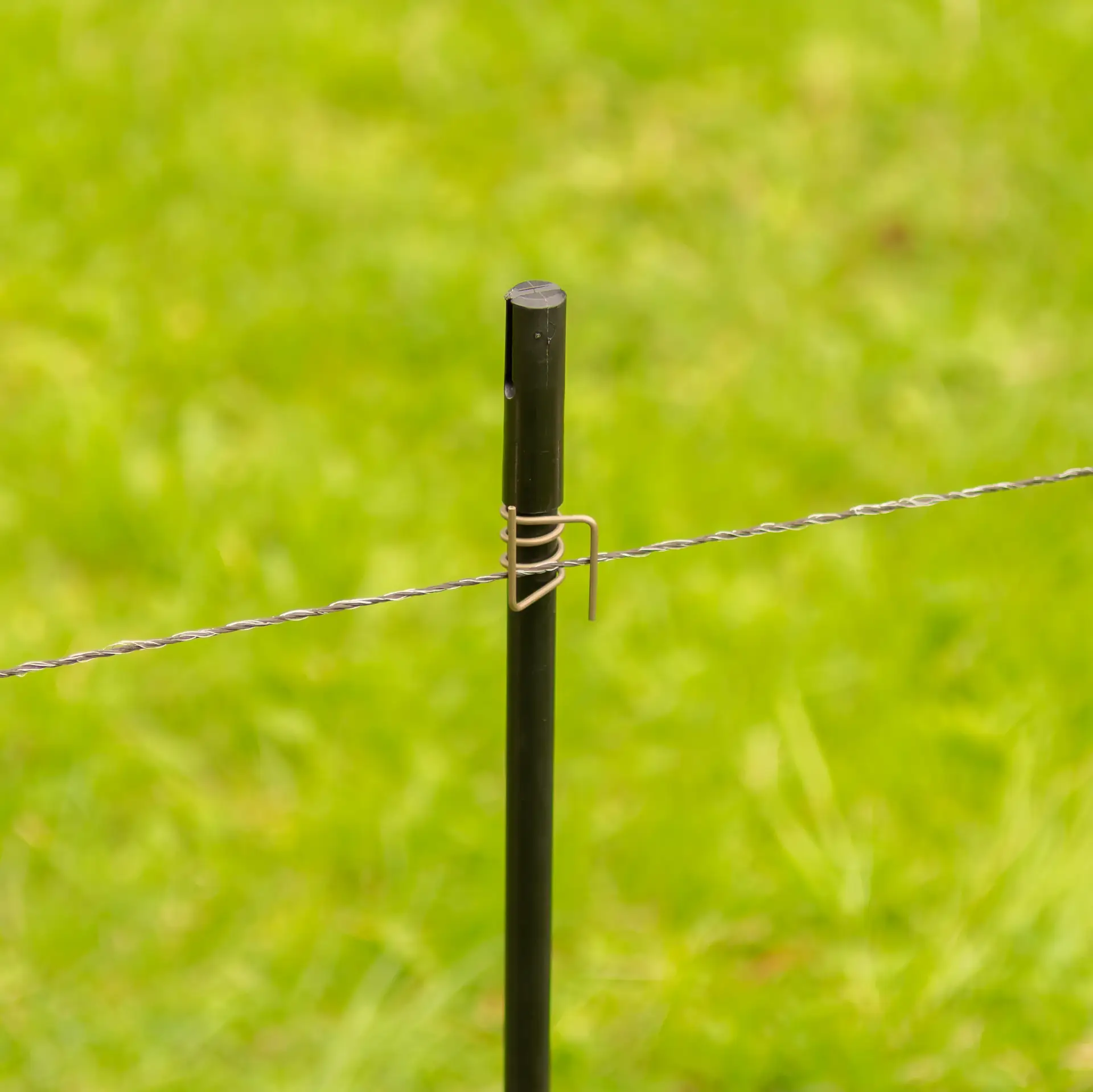

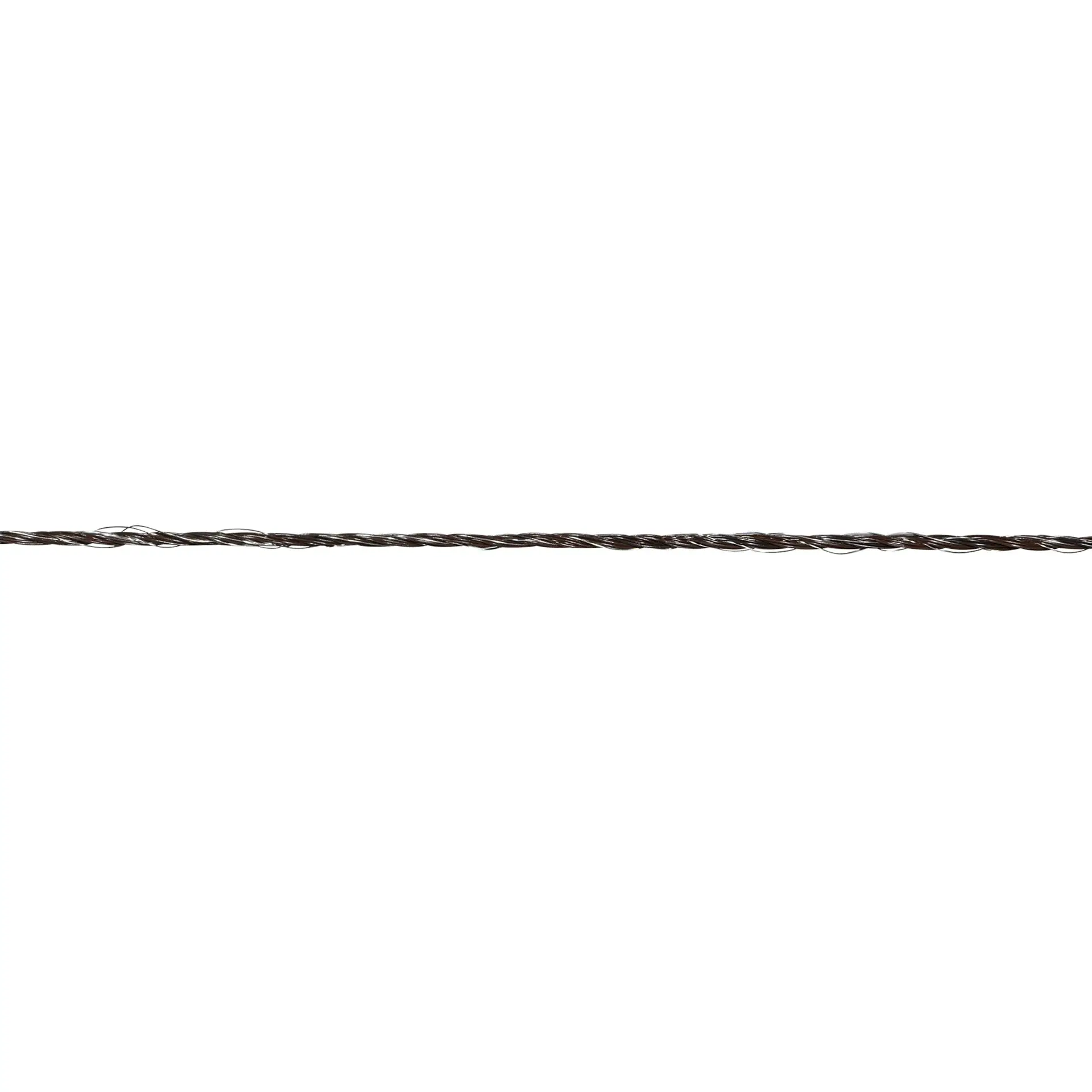

Vidoflex 3 Powerline (terra, 100 metres)
- For movable fences shorter than 500 metres
- Strong plastic wire
- Excellent conductivity
Strong plastic wire for movable fences shorter than 500 metres. 6 stainless- steel wires and 3 x 6 polyethylene wires provide excellent conductivity. Vidoflex 3 wire has a 5-year UV warranty.
Specifications
- Diameter mm: 2
- No. of stainless steel wires: 6
- No. of tinned copper wires: 0
- Resistance ohm / meter: 6.8
- Tensile strength kg: 47
| Colour: | Terra |
|---|---|
| Diameter (mm): | 2 |
| Duopack: | - |
| Number of plastic wires: | 18 |
| Number of stainless steel wires: | 6 |
| Number of tinned copper wires: | - |
| Recommended fence length (m): | < 500 |
| Tensile strength (kg): | 47 |
| UV warranty (Years): | 5 |
| Voltage at 100 m: | 3600V |
| Voltage at 500m: | 1100V |
| Voltage at 1000 m: | 600V |
| Voltage at the beginning of the fence: | 8000V |
| Ø plastic wires (mm): | 0,25 |
| Ø stainless steel wires (mm): | 0,15 |
| Ø tinned copper wires (mm): | - |
