Gallagher Solar Powerstation MBS1800i (230V)
- Ideal for remote areas
- Complete solar station on a pallet and the performance on your smartphone
- No effort to provide power in areas where no mains power is available
- Plug and play
- Up to 65 km

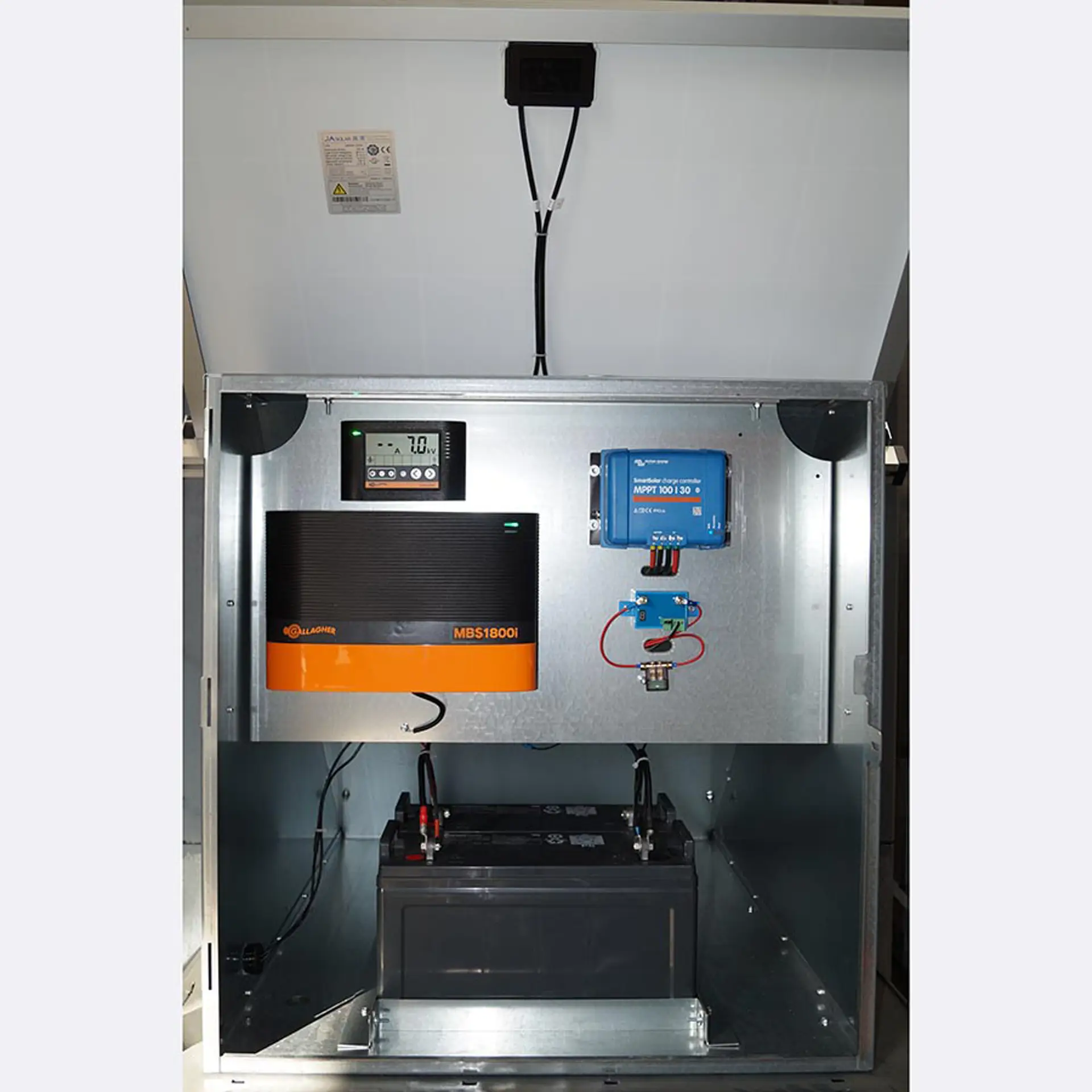

The MBS1800i energizer is fitted in theft-proof housing, which is also electrified when you close the housing. It makes stealing your energizer and accessories a lot less attractive and virtually impossible to steal. This set contains 4 gel batteries that are connected to a 325 solar panel, which is fitted on the housing and earth stakes included.
The following products are included:
- 1x Energizer MBS1800i - 230V/12V/14J: 2.6 kg
- 1x i Series Energizer Controller: 0.5 kg
- 1x Victron BlueSolar MPPT 100/30 Charge Ctr.: 1.3 kg
- 1x JA Solar module 325 Watt: 18.2 kg
- 1x Victron Smart Battery Protect BP- 65: 0.2 kg
- 2x Gel Battery Panasonic 120Ah LC- P12120P: 69 kg
- 2x Bentonite Super Earthing Mix (6kg): 12 kg
- 5x Earth stake 1 m: 15.5 kg
- 2x Earth socket: 0,2 kg
- 3x Earth clamp: 0,6 kg
- 30 m Lead out Cable 2,5 mm: 2.2 kg
- Y Joint Clamp angle with hex nut: 0,1 kg
- Metal Box 1100x800x800 mm: 27 kg
- Plastic Pallet 1200x1000 mm: 15 kg
Downloads
| Alu shield Solarstation: | 3x |
|---|---|
| Animal type: | Koe Paard Schaap Geit Wild Varken |
| Bentonit Super Earthing Mix (6,5 kg): | 2x |
| Earth clamp: | 3x |
| Earth socket: | 2x |
| Earth stake 1m: | 5x |
| Energizer: | MBS1800i |
| Joint Clamp angle with hex nut: | 10x |
| Lead out Cable 2,5mm: | 30m |
| Length x width x height (mm): | 1200x1200x1500 |
| Metal Box 1100x1200x1100mm: | ✓ |
| Plastic Pallet 1200x1200mm: | ✓ |
| Solar module 345 Watt: | ✓ |
| VRLA Battery WPL120Ah-12RN: | 2x |
| Victron BlueSolar MPPT 100/30 Solar charge controller: | ✓ |
| Victron Smart Battery Protect BP-65: | ✓ |
| i Series Energizer Controller: | ✓ |
| Weight (Kg): | 168 |
Complete with:
- Integrated fault finder leads you with arrows to the errors in the fence
- Display shows identical information as the external display, like Voltage, Amps, etc.
- Ergonomic design
- Monitors areas within your fence
- Accessory for i Series energisers
- No flat batteries thanks to solar panel
- Tough polyethylene for abrasion resistance under ground
- 2.5mm medium tensile aluminum coated wire ensures excellent conductivity
- Ideal for earthing heavy fence energisers and conducting electricity under ground over long distances
- Required by law
- Aluminum; when on the fence it will be hot. Protected from theft.
- Highly visible sign
