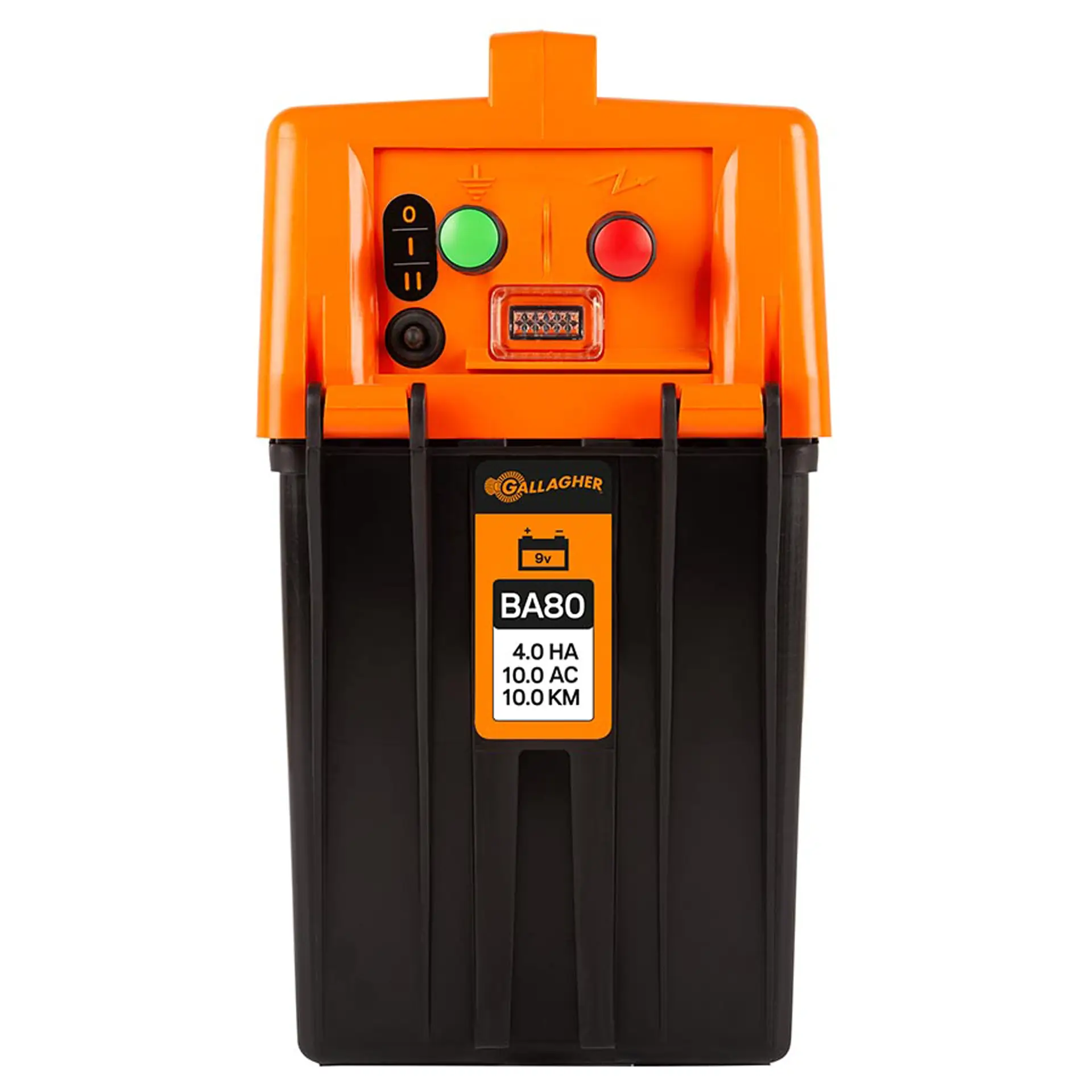

Gallagher BA80 battery fence energiser (9/12 V)
- Good price-quality ratio and easy to operate
- Works with a 9V battery or a 12V battery
- With additional cable set 005499
- Splash waterproof casing
- LED indicators show the status of the battery and energiser
Product information "Gallagher BA80 battery fence energiser (9/12 V)"
The BA80 is the most powerful battery energiser in the BA series and is suitable for fencing of up to 10 km. This energiser has 2 different modes. In mode 1 the energiser provides a standard pulse with maximum Joules. In mode 2 the energiser provides 1 pulse of 100% followed by 3 pulses of 50%. It means the battery lasts much longer and you are still sure to have sufficient power on your fencing. Supplied with a connection cable set. Battery not included.
Specifications:
- Maximum output voltage (V): 9600
- Charging energy (J): 0.8
- Maximum impulse energy (J): 0.3
- Number of earthing rods required: 1 x 1 m
- No vegetation (km) (recommended): 10
- Light vegetation (km) (recommended): 5
- Dense vegetation (km) (recommended): 3
- Fence surface (ha) (recommended): 4
Downloads
| 9V/12V connection: | ✓/✓ |
|---|---|
| Avg. current draw Battery (mA): | 90 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | - |
| Suitable powersupply (Part No.): | - |
| Auto power conservation to prevent damage to battery: | @12V |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^90 days / 9V210Ah |
| Grid area (Hec/Acre): | 4/10 |
| Multi (3) Wire Fence distance - Recommended (km): | 3 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 10 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 6 |
| Single Wire Fence distance - Ideal conditions (km): | 24 |
| Output Energy (J): | 0,48 |
| Stored Energy (J): | 0,8 |
| Voltage with 100 Ohm (V): | 560 / 480 |
| Output with 500 Ohm (V): | 2200 / 2000 |
| Maximum output Voltage: | 9400 |
| Half power mode: | - |
| Night savings option: | - |
| Recommended Battery (minimal advised): | 9V-120Ah |
| Weight (Kg): | 1,6 |
